Products Displayed On This Page:

Coordinate your restroom with shower seats, curtains, corner guards and grab bars.

Specify for all grab bars when ordering:

  • 1. Part Number
  • 2. Concealed or exposed mounting screws
  • 3. 1-1/4" or 1-1/2" diameter.
  • 4. With or without knurling or peening
  • Standard model: 1/4" tubing diameter with exposed screws, without knurling.
  • GRAB BARS are made in Canada from type 304, 18 gauge, stainless steel and are 100% ADA compliant.

Grab Bars for Toilet Stools

Note: Measurement is centre line to centre line

  • Straight Bars
12" K7410
16" K7411
18" K7412
24" K7413
32" K7414
42" K7415
36" K7416
48" K7417
  • Straight Bars with Centerposts
24" K7413C
32" K7414C
42" K7415C
36" K7416C
48" K7417C
  • Toilet Partition Bar
42" K74181
48" K74182
52" K74183
54" K74184

Installation Kits

Order 1 kit per flange

When ordering specify: Mounting kit desired from the table below. Kit numbers are based upon the wall construction and the flange type desired.

  • Wood Backing
Round "B" Exposed KGB1B, Concealed KGB1D
  • 1" Toilet Partition
Round "B" Exposed KGB4B, Concealed KGB2D
  • Dry Wall
Round "B"Exposed KGB4B, Concealed KGB4D
  • Masonry Wall
Round "B" Exposed KGB5B, Concealed KGB5D

Grab Bars for Toilet Stools

  • Model 2256 (right hand) 2257 (left hand)
  • Model 2245L (left hand) 2245R (right hand)
  • Model 7449
  • Swing-up Model 3410 Locks firmly into place when lifted into an upright position
  • Model 2236
  • Model 2271
  • Model 2231
  • Model 7472 Adjustable and locks into three positions
  • Model 7435 (right hand) Specify left hand if needed
  • Model 2224 For tank type toilet

Grab Bars for Showers

  • Model 7475
  • Model 2242 (right hand) 2243 (left hand)

Grab Bars for Urinals

  • Model K203R (right hand) K202L (left hand)
  • Model 202

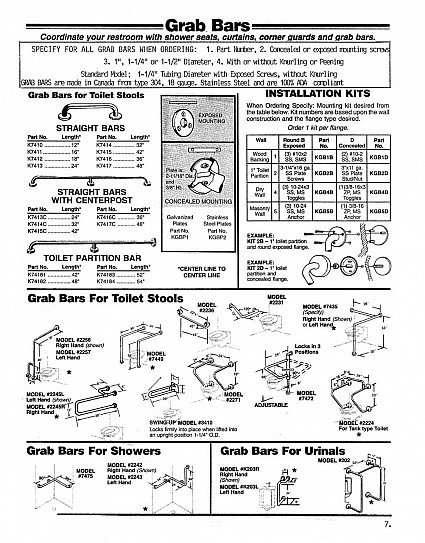

Grab Bars for Toilet Stools, Showers, Urinals

Click to enlarge

Grab Bars for Toilet Stools, Showers and Urinals


General Ordering Information
  • Order by
    • Phone: 1-800-465-2815
    • Fax: 519-631-2282
    • or by Email
  • Monday to Friday, 7:00 am to 8:00 pm EST
  • To be assured of the correct replacement, send us a photo or sample of the part needed.
  • Next day delivery available on many items.
  • FOB St. Thomas, Ontario. Please click here for complete terms & conditions.
  • If you do not see the item you need, just ask!. We stock many items not shown in our catalog - Hard to find parts are our specialty!
